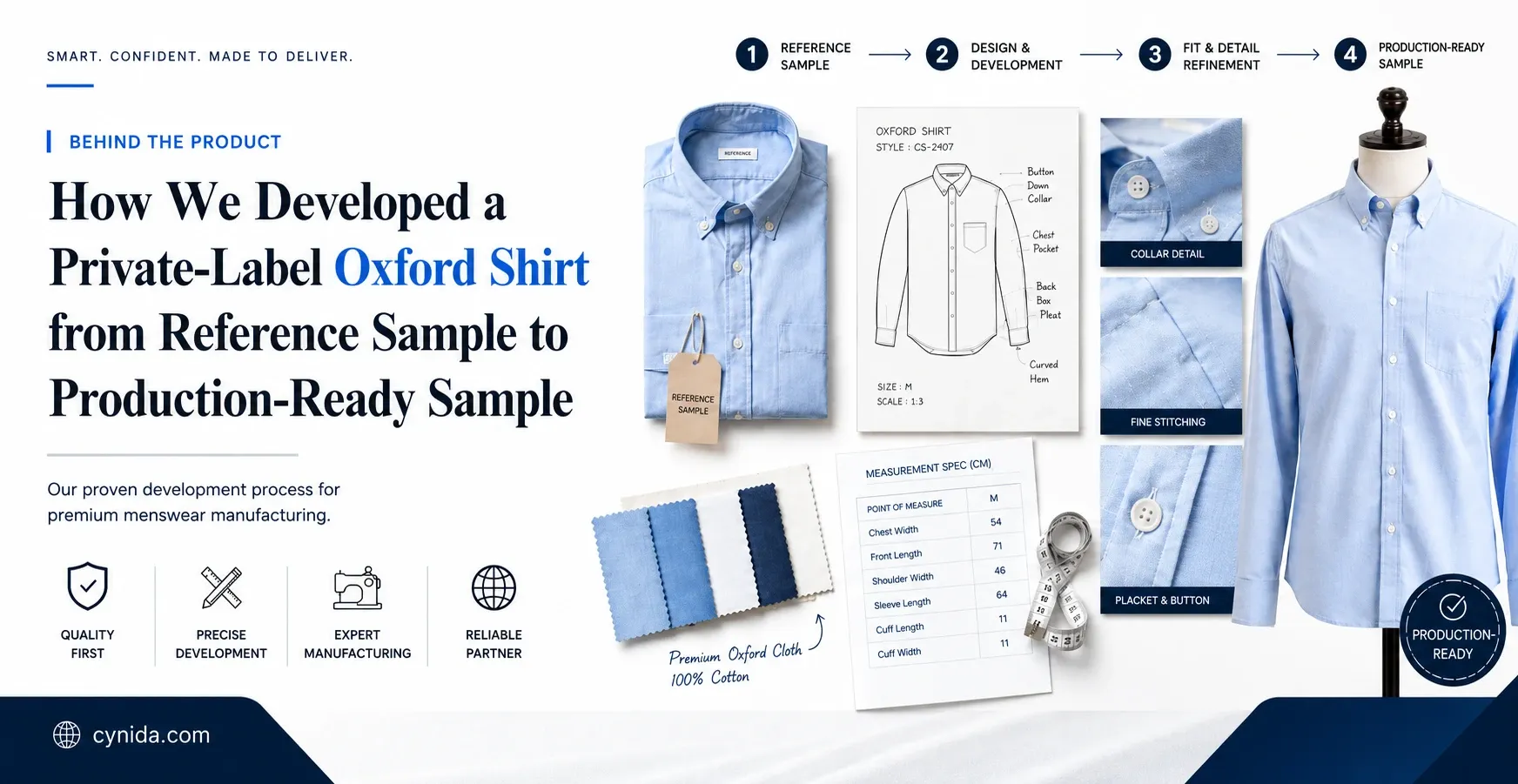

How We Developed a Private-Label Oxford Shirt from Reference Sample to Production-Ready Sample

A buyer can recognize a shirt immediately, but a sample room cannot manufacture “the same feeling” without converting that reference into controlled decisions. Collar shape, collar stand, button placement, placket construction, fabric behavior and fit all need to be visible in the specification and verified on the garment.

This anonymized case comes from an Oxford shirt project in which we made a serious first-sample mistake: the buyer's reference shirt had two button-down collar-point buttons, but we omitted them. Correcting the sample consumed time that should have been spent refining fit and preparing for production. More importantly, the error changed the way we document unfamiliar shirt details.

The lesson is useful for any brand working with a private-label smart casual shirt manufacturer: a reference sample is evidence of design intent, but it is not a complete production instruction.

Initial Buyer Brief

The project started from a buyer-supplied reference shirt. The defining feature was a button-down collar, with one small button securing each collar point. Those two buttons were visually modest, yet they affected the collar roll, the way the points sat against the shirt front and the overall casual character of the style.

The reference also communicated the general direction of the garment: an everyday Oxford shirt rather than a formal dress shirt. However, a physical sample alone did not answer every production question. A factory still needs to confirm which details must be copied, which may be improved, and which are only incidental to the reference garment.

A garment sample request form makes those copy, change and factory-proposal decisions explicit, while pointing the sample room to the current drawings, BOM, measurements and reference evidence.

The word “Oxford” also needs a nominated fabric quality. Cotton Incorporated's Textile Weaving guide distinguishes basic Oxford from finer structures such as pinpoint Oxford. The trade name therefore does not replace fabric construction, composition, weight, color, finish, hand feel and approved swatch.

What Was Missing from the Original Specification

The two collar-point buttons were present on the reference garment, but they were not converted into an unmistakable written control point. We did not have a numbered collar detail, a complete trim line for those buttons, or a pre-cutting feature checklist that forced the team to confirm them.

That gap mattered because this collar treatment was unfamiliar to the people handling the first sample. When a detail is familiar, a team may notice it automatically. When it is new, relying on memory or visual interpretation creates risk.

For a shirt developed from a reference garment, the working pack should separate three types of information:

Our current menswear tech pack checklist explains how these documents work together. For this Oxford shirt, the missing controls should have included “two collar-point buttons,” the matching buttonholes, button size and color, placement from the collar point, thread color and a reference close-up.

Problems Found in the First Sample

The first sample was made without the two collar-point buttons. The omission changed more than the trim count.

• The collar points were no longer anchored to the shirt front.
• The intended button-down collar roll could not be assessed correctly.
• The sample did not represent the buyer's reference design.
• The collar pattern, buttonhole position and button attachment could not be approved as a complete system.
• The team had to reopen work that should have been verified before the first sample was finished.

This was our error, not a buyer communication problem. The reference garment showed the feature. Our process failed to translate the visible detail into a controlled operation.

If a design detail is important enough to change the garment's identity, it must appear in the drawing, bill of materials, operation notes and sample checklist—not only on the reference garment.

Collar, Placket and Fit Corrections

The immediate correction was to reinstate the complete button-down collar treatment. That meant checking the collar as an assembly rather than simply sewing on two buttons at the end.

Collar controls

• Confirm one button and one buttonhole for each collar point.
• Check left-to-right symmetry while the shirt is buttoned and laid flat.
• Confirm button diameter, thickness, color and sewing thread against the approved trim.
• Verify button position relative to the collar point and collar edge.
• Review the collar roll on a form or wearer, not only on a flat table.
• Check that the collar stand height and collar-point length create the intended proportion.

A button placed too far inward can flatten the roll; one placed too close to the point can distort the tip. Interlining, seam allowance, turn-of-cloth and pressing also influence whether the two sides appear balanced. The correct result is therefore an approved combination of pattern, material, placement and workmanship.

Placket controls

The center-front placket provides the visual axis of a shirt. During the corrective review, the relevant questions were whether it lay flat, whether the button line remained straight and whether the collar, top button and placket aligned when the shirt was closed.

A twisted or rippled placket can come from cutting, fusing, feed balance, pressing or fabric movement. The inspection record should describe the observed symptom and the approved correction instead of using a vague comment such as “make it cleaner.”

Fit controls

Collar correction should not hide fit issues. A shirt approval still needs a defined base size and measuring method for neck, chest, shoulder, body length, sleeve length, cuff and hem. It should also record balance observations such as shoulder slope, sleeve pitch, front-to-back length and whether the side seams hang vertically.

We do not have verified numeric first- and second-round measurement changes for this case, so we will not invent them. The reliable revision record is:

That distinction matters. A useful case study should separate facts from recommended controls rather than filling gaps with plausible-looking numbers.

Wash and Shrinkage Review

Oxford cloth can change in length and width after laundering, and the finished shirt can also show seam puckering, twisting or a changed collar appearance. There is no responsible universal shrinkage percentage for every Oxford shirt. Fiber content, yarn, weave, finishing, fusing, sewing and the chosen wash-and-dry procedure all influence the result.

The wash record should start with a defined method. ISO 3759:2011 covers preparation, marking and measurement for dimensional-change testing. ISO 6330:2021 defines domestic washing and drying procedures, while ISO 5077:2007 covers calculation of dimensional change after the selected treatment. For programs using AATCC methods, AATCC TM150-2025 addresses length and width changes in garments after home laundering. A linen or linen-blend shirting needs the same chain of methods with closer attention to warp and weft moving by different amounts, which our linen shirt specification guide covers field by field.

For a shirt sample, record the procedure and compare at least these points before and after washing:

• collar circumference and collar-point appearance;
• chest, shoulder and body length;
• sleeve length and cuff dimensions;
• placket straightness and front-edge alignment;
• side-seam and sleeve-seam twisting;
• surface appearance, seam puckering and button security.

ISO 15487:2018 is also relevant when the approval includes appearance after washing, such as smoothness, pilling, fuzzing, seam appearance and damage to components. The number alone is not enough: a shirt can remain within dimensional tolerance and still fail visually at the collar or placket.

For brands selling into the United States, the FTC's Care Labeling Rule guidance says manufacturers and importers need a reasonable basis for the care instructions attached to garments. That is another reason to connect the wash test, approved care wording and PP sample instead of treating them as separate files.

Final PP Sample Approval

The production-ready or pre-production sample should be the physical standard for bulk manufacturing. It is not merely the latest sample in the room. Approval should identify the exact garment, date, version and any remaining conditions.

For this Oxford shirt, the PP approval package should lock:

• approved shell fabric, color, finish and wash condition;
• button-down collar construction, collar-point button placement and symmetry;
• collar stand, collar points, interlining and finished collar roll;
• center-front placket width, alignment, button spacing and buttonholes;
• base-size measurements, tolerances and measuring method;
• sleeve, cuff, yoke, hem and pocket construction;
• labels, care instructions, thread, buttons and packaging;
• approved workmanship and appearance after the specified care test;
• a sealed PP sample and matching revision-controlled documents.

The buyer and factory should also state whether approval is unconditional or subject to a specific correction. “Approved except collar buttons” is not a complete bulk standard unless the corrected detail is documented and checked before cutting or line production.

Bulk Production Checkpoints

The first-sample mistake became a bulk-control lesson. The most important checks now occur before, during and after sewing.

Before cutting and line start

• Compare the production pack with the sealed PP sample.
• Confirm all trims are present, including the two collar-point buttons per shirt.
• Approve fabric lot, shade continuity and wash-test status.
• Verify collar, stand, placket and interlining patterns are the approved versions.
• Make a pre-production meeting record with owners for every open point.

During sewing

• Inspect first output for collar symmetry, buttonhole direction and button position.
• Check placket alignment and feeding before volume increases.
• Measure critical points against the approved tolerance chart.
• Confirm button attachment, thread trimming, pressing and collar shape at defined intervals.
• Isolate nonconforming pieces and record corrective action instead of repairing them invisibly.

Final inspection

• Verify the button-down feature on every sampled garment.
• Check collar roll, collar-point symmetry and placket straightness with the shirt fastened.
• Review measurements in the specified wash state.
• Inspect shade, stains, puckering, loose threads, labels and packing assortment.
• Retain an approved production sample and inspection record for repeat orders.

Buyer Checklist for an Oxford Shirt Development Brief

Before starting sample development, a buyer can reduce uncertainty by sending the following:

• reference garment, clear photos or technical flat;
• a list of features that must be copied exactly;
• notes on anything that should change from the reference;
• nominated Oxford quality or target composition, weight, finish and hand feel;
• base size, measurement chart, measurement method and tolerances;
• collar style, collar stand, point length and interlining direction;
• button and buttonhole specifications, including the collar-point pair;
• placket, pocket, yoke, cuff, sleeve placket and hem details;
• target market, care expectation and required testing;
• quantity, colorways, size range, packaging and approval deadline;
• one decision-maker for consolidated sample comments.

Photographs are useful, but close-ups should be paired with callouts. If a feature is unusual, circle it, name it and assign it a line in the BOM or construction notes. If a detail is intentionally omitted from the new design, record that decision too.

The Process Change We Kept

The value of this case is not that a missing button is technically complex. It is that a small, visible feature escaped the first sample because the process depended on recognition rather than verification.

After the correction, the practical change was simple: unfamiliar details must be extracted from the reference garment and placed into a feature checklist before pattern work and sample sewing. The sample review then closes each item with a photo, measurement, material approval or written comment.

That discipline helps a custom shirt manufacturing process become repeatable. It gives the buyer a clearer approval trail, gives the sample room fewer opportunities to guess, and gives bulk production a standard that can be inspected—not just remembered.
